Description
| Model Version | LT15E 1.0 | |
|---|---|---|
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Cellular | Cellular Standards | 4G LTE Cat. 12 |
| Cellular Antennas | 4× Internal, 2× Detachable | |
| Detachable Cellular Antennas Connector | SMA Female | |

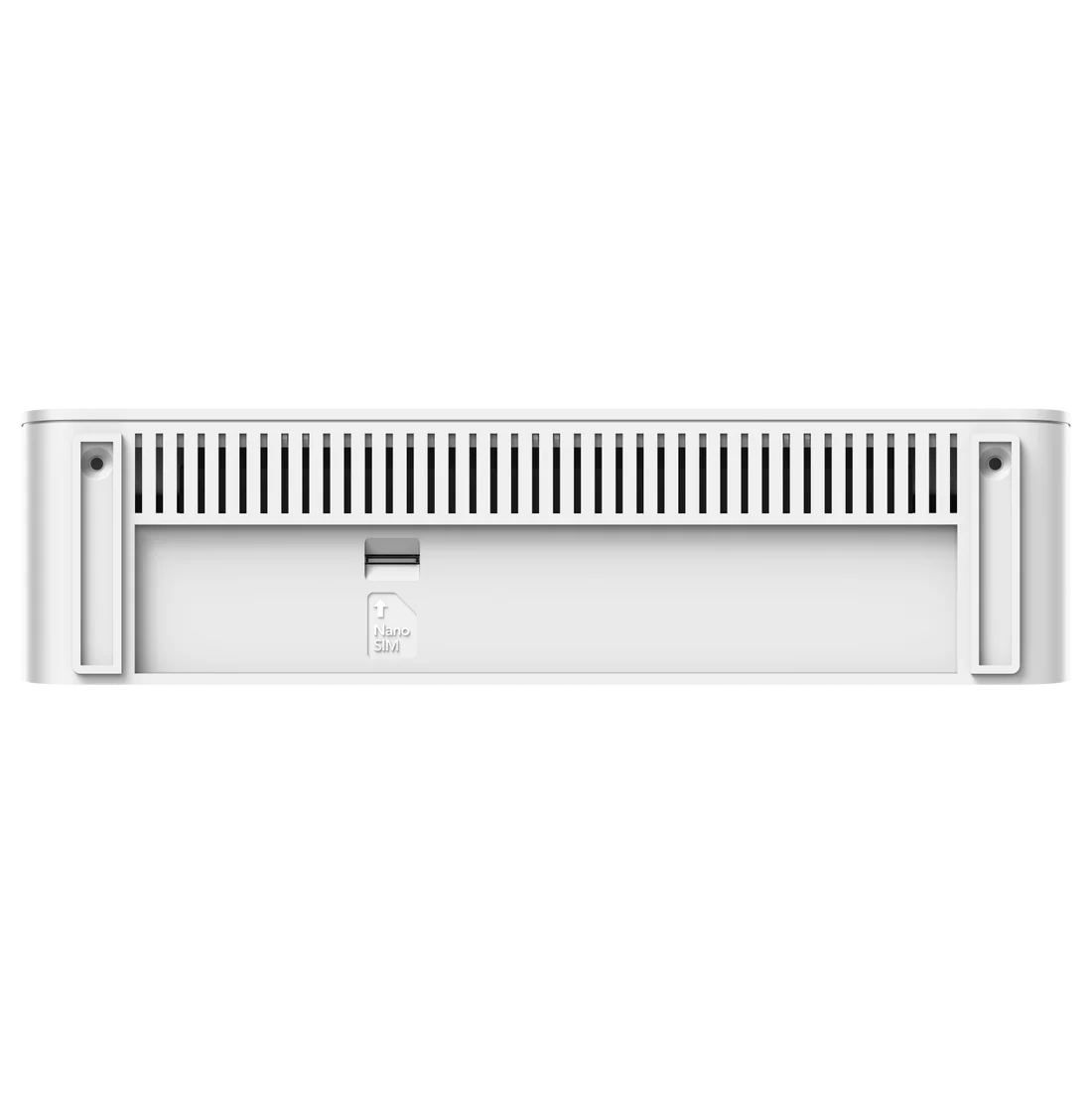

| SIM Options |
|
|
| Available Versions | EU, US | |
| EU Version Cellular | Suitable Region | Europe, Middle East, Africa, Australia, Brazil |
| Max DL Speed | 600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD) | |
| Max UL Speed | 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) | |
| Advanced | DL 3CA, DL 4×4 MIMO | |
| Cellular Bands | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/3/5/8 |
|
| US Version Cellular | Suitable Region | United States, Canada |
| Max DL Speed | 600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD) | |
| Max UL Speed | 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) | |
| Advanced | DL 3CA, DL 4×4 MIMO | |
| Cellular Bands | LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71 LTE-TDD: B41/48 |
|
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 3× Internal | |
| Beamforming | True | |
| FEM or PA/LNA |
|
|
| Range Performance | Max: 180 m (591 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) |
|
| Interfaces | Physical Buttons |
|

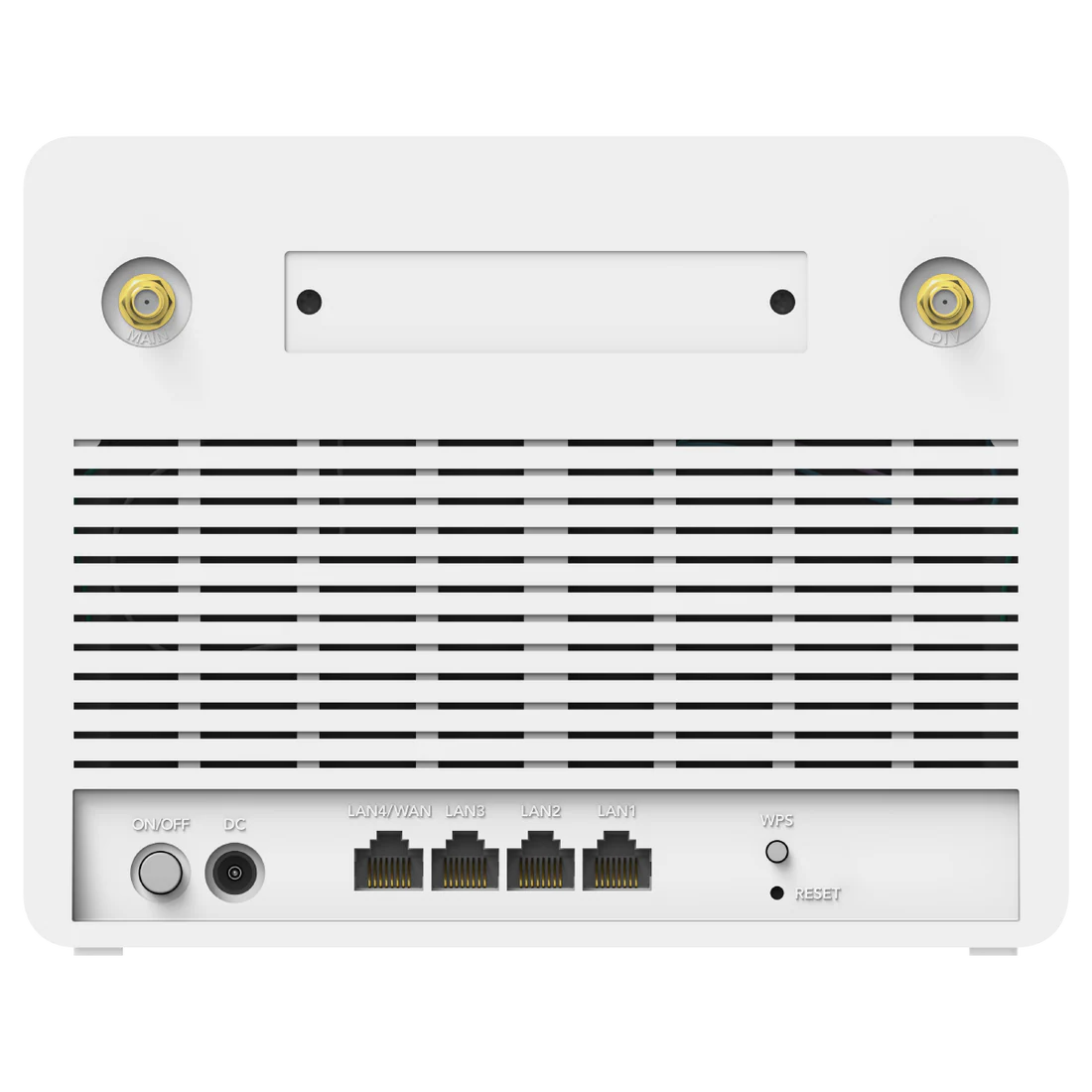

| Gigabit RJ45 Ports | 4 | |
| Ethernet Notes | 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports | |
| LED |
|
|
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC Input | 12V 1.5A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC |
|
| Max Power Consumption (W) | 13W | |
| Idle Power Consumption (W) | 6W | |
| Reliability | EMC | ESD: Contact: 4kV; Air: 8kV |
| Environment | Operating Humidity: 0% ~ 100% non-condensing | |
| Certifications | FCC, CE | |
| Mechanical | Dimension | 190×50×148.8 mm 7.48×1.97×5.86 inches |
| Product Weight | 382 g (13.47 oz.) | |
| Installation | Desktop | |
| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU: 748 g (26.38 oz.) |
| Retail Package Dimension | 270×58×168 mm 10.63×2.28×6.61 inches |
|
| Units per Carton | 20 | |
| Carton Net Weight | EU: 15.0 kg (33.07 lbs) | |
| Carton Gross Weight | EU: 15.9 kg (35.05 lbs) | |
| Carton Dimension | 55.8×31.7×36.3 cm 21.97×12.48×14.29 inches |
|
