Description
| Model Version | AP3000D 1.0 | |
|---|---|---|
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |

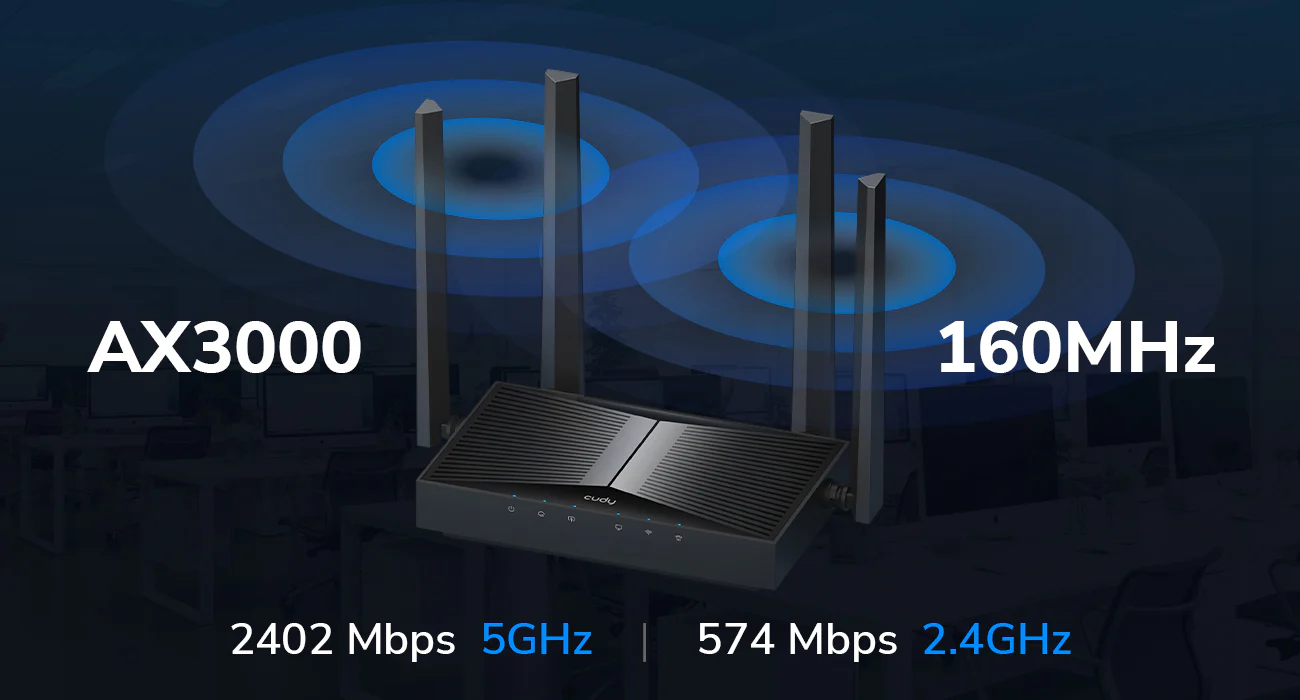

| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) with an Extra Stream | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| FEM or PA/LNA |
|
|
| Beamforming | True | |
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) |
|

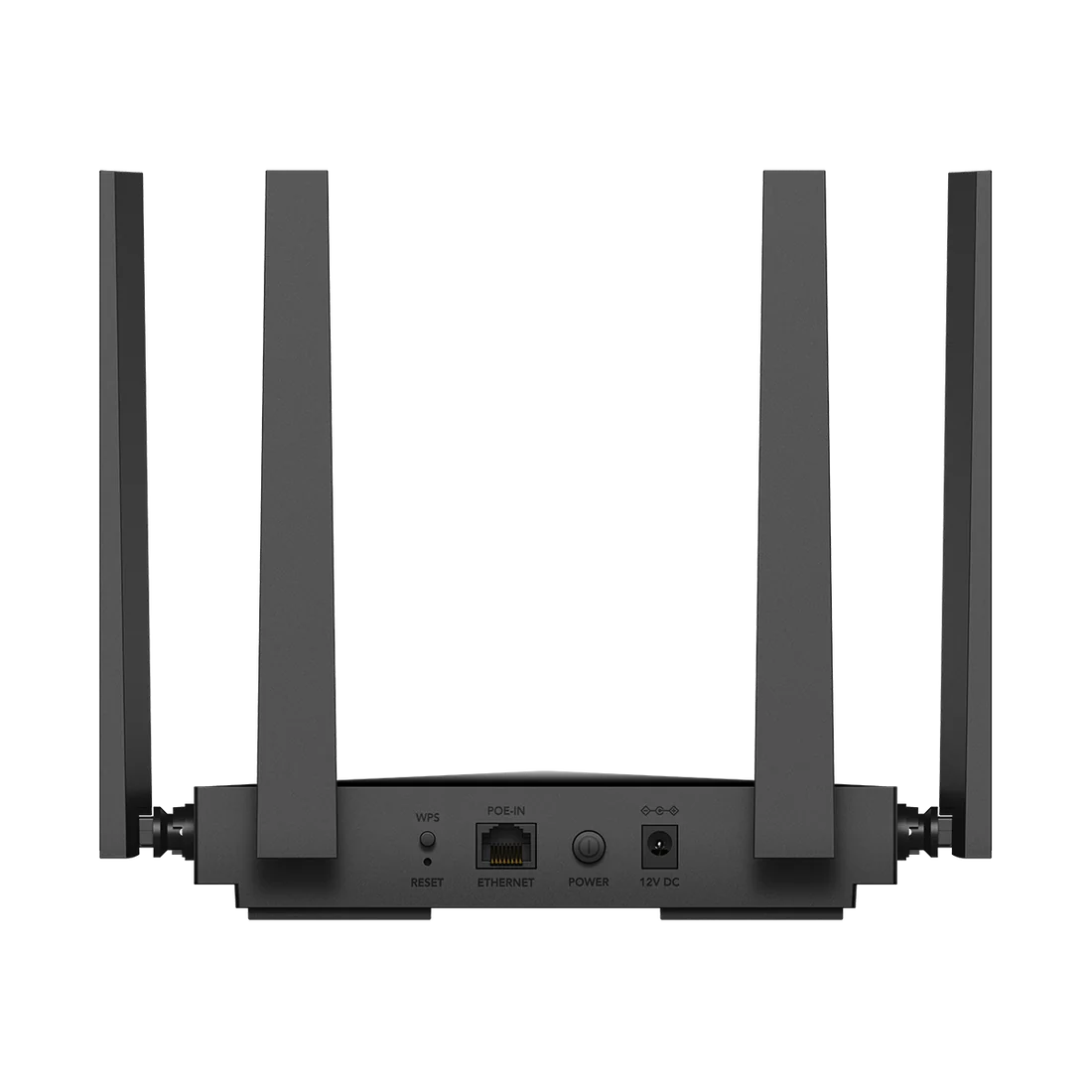

| Interfaces | Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering | |
| LED |
|
|
| Physical Buttons |
|
|
| Power Input |
|
|
| Power | Power Methods |
|
| DC Input | 12V 1A | |
| Passive PoE Input | 12V | |
| Power Adapter | AP3000D/AP3000D_P | DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC AP3000D_P | Gigabit DC Passive PoE Injector in the box: |
|
| Max Power Consumption (W) | 12 W (48 V PoE) 12 W (DC) | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches |
|
| Product Weight | 309.0 g (10.9 oz.) | |

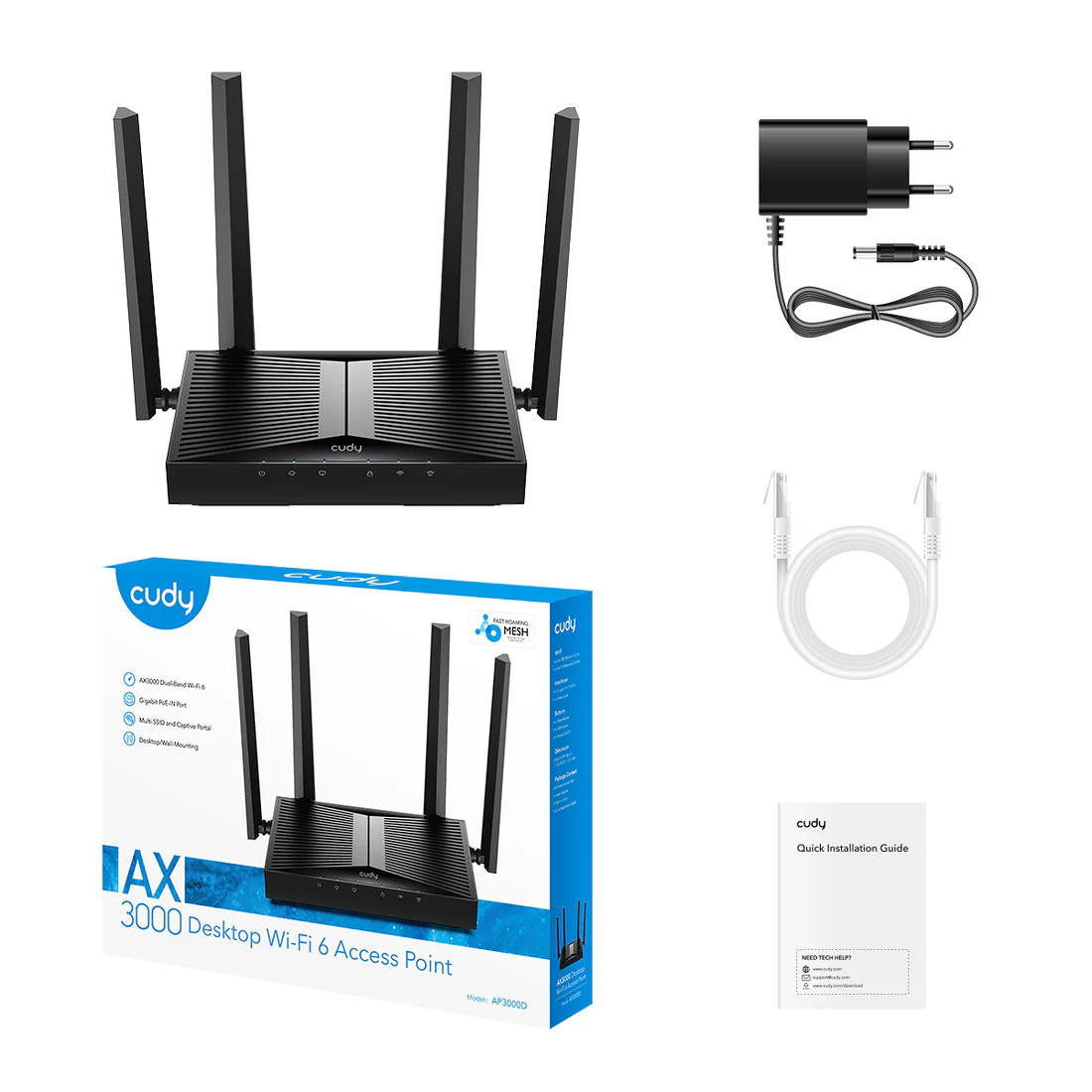

| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU: 719.5 g (25.38 oz.) |
| Retail Package Dimension | 330×256×60 mm 12.99×10.08×2.36 inches |
|
| Units per Carton | 10 | |
| Carton Net Weight | EU: 7.2 kg (15.87 lbs) | |
| Carton Gross Weight | EU: 7.9 kg (17.42 lbs) | |
| Carton Dimension | 52.8×31.7×34.7 cm 20.79×12.48×13.66 inches |
|
