Description
| Model Version | TR3600 1.0 | |
|---|---|---|
| CPU | CPU Details | 2.0 GHz Quad-Core, ARM Cortex-A7 |
| Memory/Storage | Flash/ROM | 256 MB (2 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2882 Mbps |
| 2.4 GHz Wi-Fi Speed | 688 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 2× Fixed | |
| FEM or PA/LNA |
|
|
| Beamforming | True | |
| Range Performance | Max: 180 m (591 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) |
|
| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 | |
| Ethernet Notes | The 2.5G port is WAN port, the Gigabit port is LAN port | |
| USB-A 3.0 Ports | 1 | |
| LED | System | |
| Physical Buttons |
|
|
| Power Input | USB-C Port | |
| Power | Power Methods | DC / PD |
| DC Input | 5V 3A, PD | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 5V 3A DC |
|
| Max Power Consumption (W) | 15w | |
| Idle Power Consumption (W) | 3.9w | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Main Part: 118×80×27.5 mm 4.65×3.15×1.08 inches Antenna: |
|

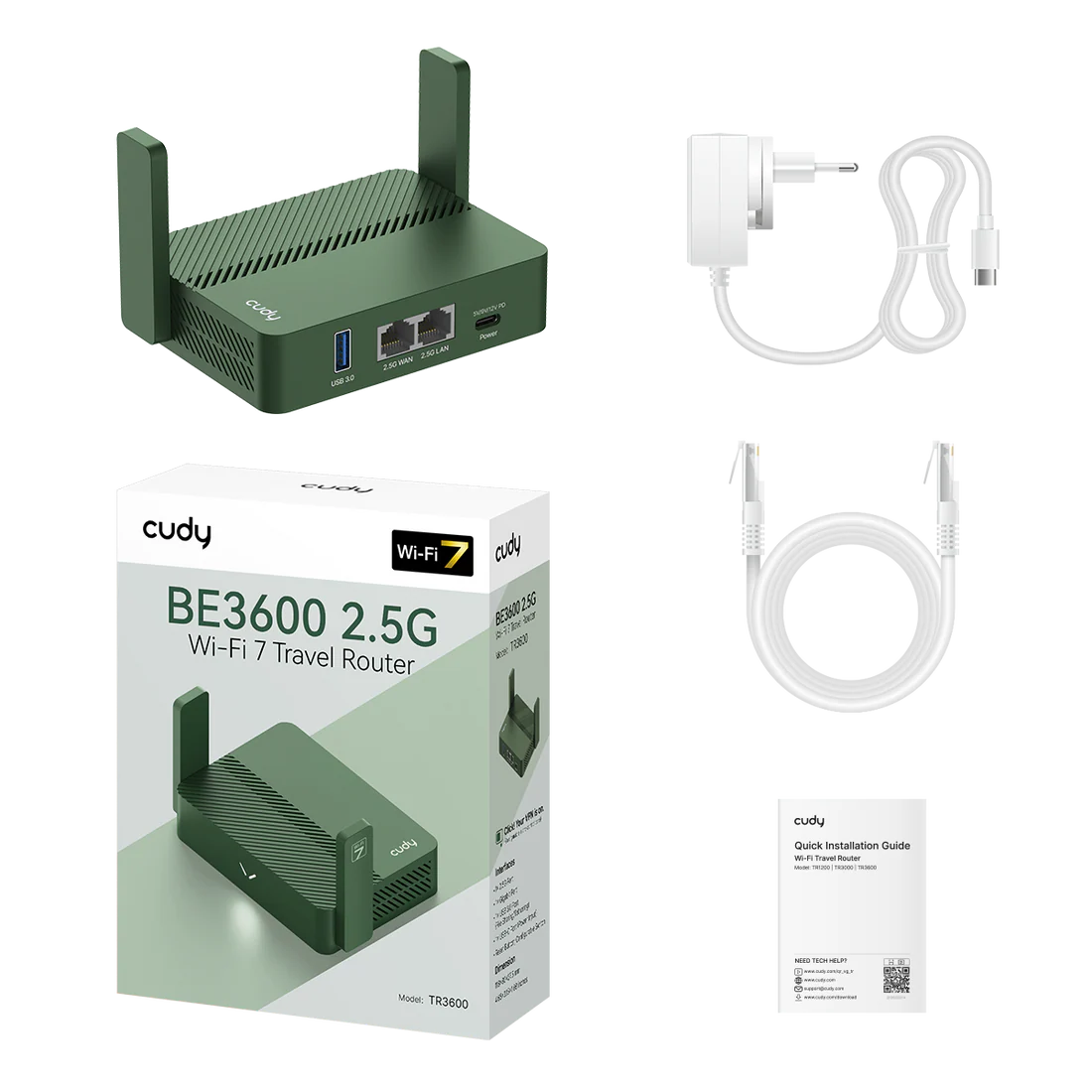

| Package Content |
|
|
| Ordering Information | Retail Package Dimension | 176×140.5×56 mm 6.93×5.53×2.2 inches |
| Units per Carton | 40 | |
| Carton Dimension | 60×30×37.5 cm 23.62×11.81×14.76 inches |
|
