Description

• Model Version	WR3000H 1.0
  CPU	CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
  Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
  	DDR/RAM	256 MB (2 Gbit) DDR3
  Wireless	5 GHz Wi-Fi Speed	2402 Mbps
  	2.4 GHz Wi-Fi Speed	574 Mbps
  	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO) with an Extra Stream
  	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
  	Wi-Fi Antennas	4× Fixed
  	FEM or PA/LNA	5 GHz: 3× Internal 2.4 GHz: 2× Internal
  	Beamforming	True
  	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
  	Wall Performance	Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

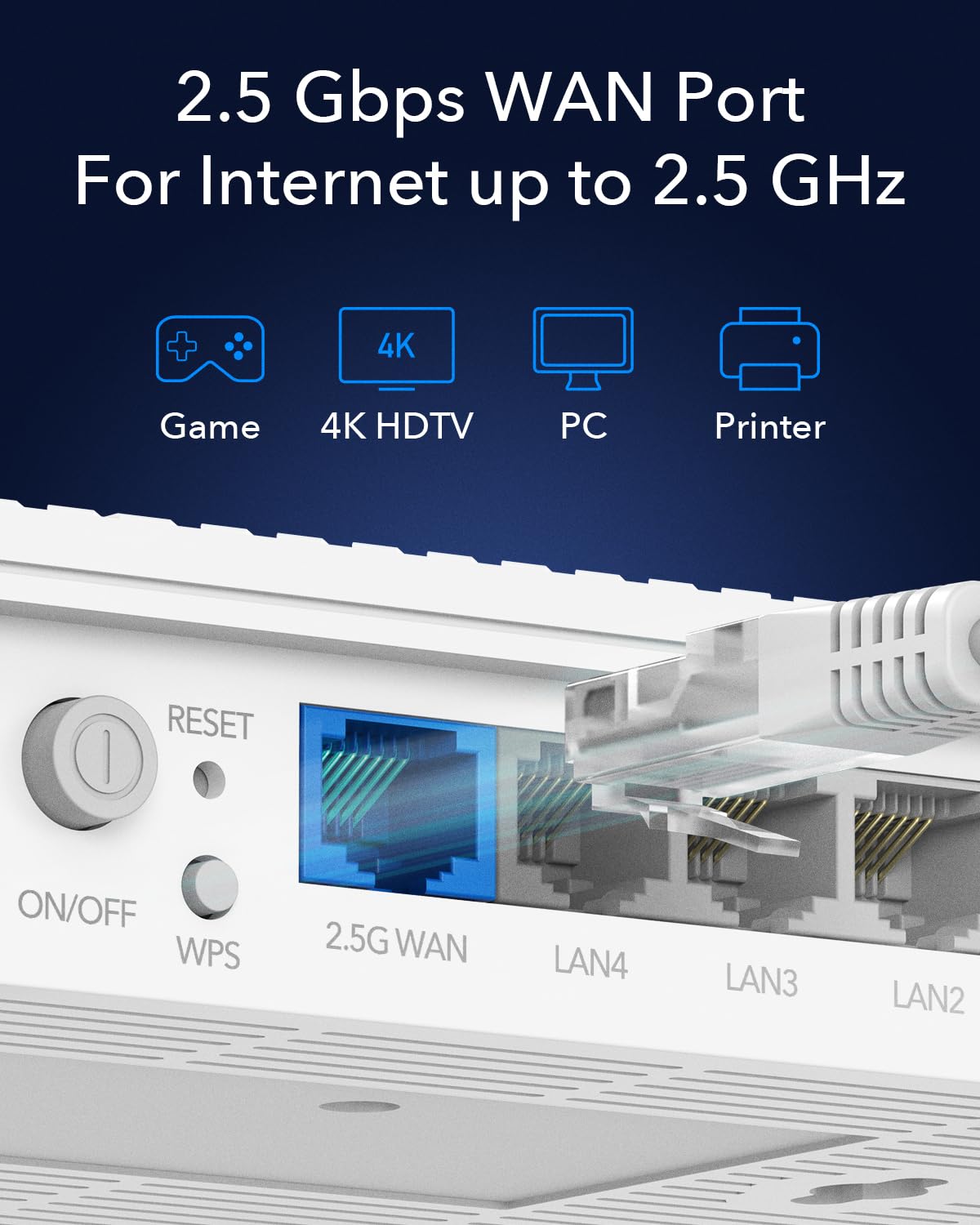

  Interfaces	2.5G RJ45 Ports	1
  	Gigabit RJ45 Ports	4
  	Ethernet Notes	The 2.5G port is WAN port, the Gigabit ports are LAN ports
  	LED	System Internet WPS 2.4 GHz Wi-Fi 5 GHz Wi-Fi WAN LAN
  	Physical Buttons	Power On/Off Button WPS Button Reset Button
  	Power Input	DC Jack
  Power	Power Methods	DC
  	DC Input	12V 1.5A
  	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC
  	Max Power Consumption (W)	12W
  	Idle Power Consumption (W)	4.5w
  Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
  Certifications	FCC, CE
  Mechanical	Installation	Desktop Wall-mount
  	Dimension	Main Part: 173×123.8×33 mm 6.81×4.87×1.3 inches Antenna:
  	Product Weight	347.6 g (12.26 oz.)
  Package Content	WR3000H Power Adapter Ethernet Cable Installation Guide
  Ordering Information	Retail Package Weight	EU: 787.5 g (27.78 oz.)
  	Retail Package Dimension	304×268×54 mm 11.97×10.55×2.13 inches
  	Units per Carton	20
  	Carton Dimension	55.6×55.5×32.5 cm 21.89×21.85×12.8 inches
  	Carton Gross Weight	EU: 17.1 kg (37.7 lbs)
  	Carton Net Weight	EU: 15.8 kg (34.83 lbs)
