DAG 3000-32S

DAG3000-32S/O is a multi-functional analog gateway offering
seamless connectivity between IP-based telephony networks
and legacy telephones (POTS), fax machines and PBX

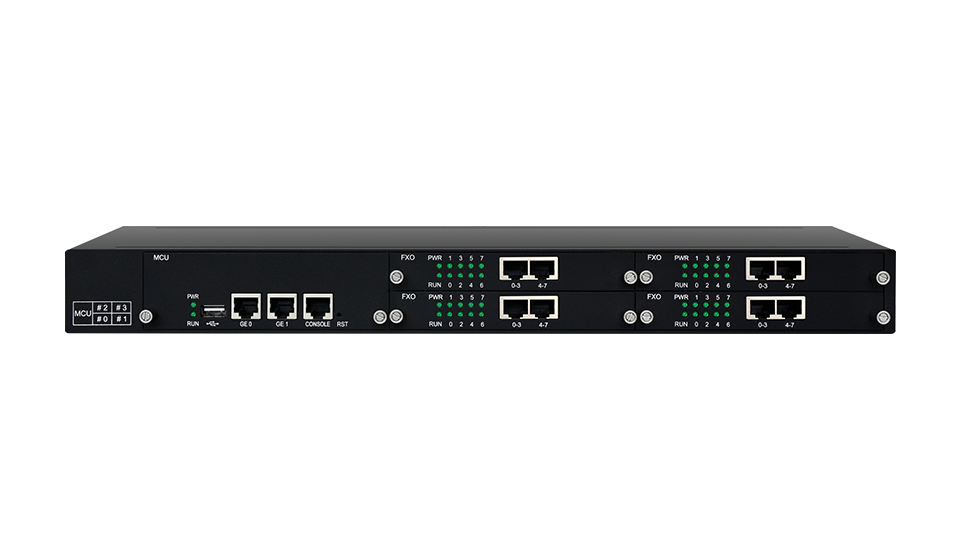

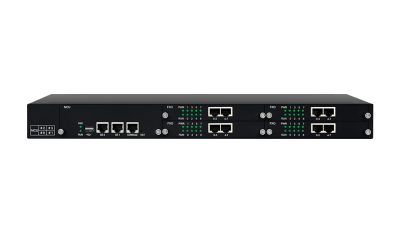

systems. It adopts modularized hardware design that allows to
expand FXS/FXO ports by adding boards according to user’s
requirements. Each board has 8 FXS/FXO ports, and the
gateway supports 32 FXS/FXO ports at maximum.

DAG3000-32S/O supports the standard SIP protocol and it’s compatible with leading IMS/NGN platforms and SIPbased
IP telephony systems. Which is ideally suited for small and medium businesses, call centers and multilocation
environments that need VoIP services.

• Cost effective gateway with 32 FXS/FXO ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system
